65″ Interactive Flat Panel
The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL is a powerful device with Android 8.0 and a wide range of connectivity.
The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL is a universal presentation tool for showcasing lessons or presentations interactively in any classroom or meeting room. New and improved 20-input IR touch technology with direct bonding, enables a more precise writing experience. Antibacterial glass reduces disease transmission in the classroom or meeting room.

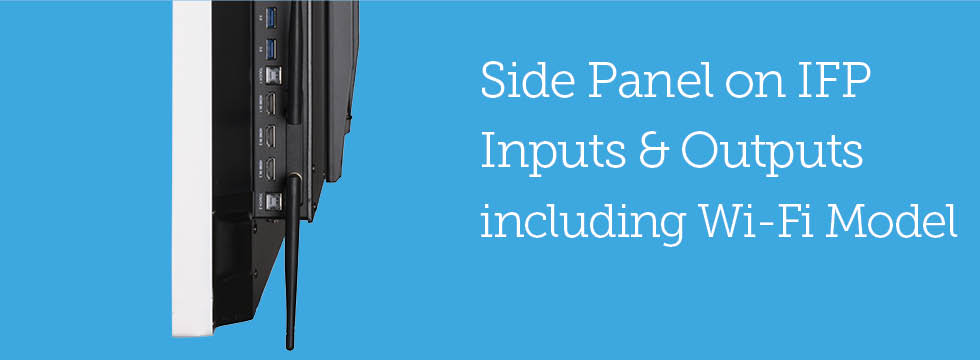

Various Inputs and Outputs can be accessed on the front, side, and even bottom of the panel, USB type-C included. The front USB ports can be used to connect OPSs, laptops, or Android devices. Powerful 2,4GHz / 5GHz Built-in Wi-Fi Module with Bluetooth 4.0 allows creating a hotspot.
The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL is powered by Android version 8.0 bringing many new useful features. You can create quick lessons in our new Note whiteboard, connect to your IFP with TeamViewer QuickSupport, easily clear the entire cache with one click or restrict access to certain inputs based on the customer’s needs. All features and setup can be brought up very quickly, with a side toolbar.
The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL takes customers to the next level with an extensive software bundle which includes: Whiteboard software, mozaBook CLASSROOM, EShare, OfficeSuite, TeamViewer QuickSupport.
Contact Us
If you want to purchase TRIUMPH BOARD products or find out more information, please contact us and we will connect you with an authorized distributor near to you.
Contact- Android system 8.0
- Zero Bonding
- IR Touch
- Antibacterial & Antiglare Glass
- USB Type-C with Power
- Wi-Fi Built-in & Hotspot
- LAN 1000 Mbps
- 2x Front Speakers
- Optional Built in OPS PC
- Optional LiftBoxes and Stands
- Optional Remote Management System
- Note – annotation software under every source (Android)
- mozaBook CLASSROOM – educational presentation software (Windows)
- EShare – wireless content sharing software (Windows & Android)
- OfficeSuite – All-in-One Office Application (Android)
| EAN | 8592580118661 |
| Display | |
| Diagonal Size | 65" / 1651 mm |
| Resolution | UHD (3840 × 2160 ) |
| Screen Type | OpenCell DLED Backlight |
| Aspect Ratio | 16:9 |
| Display Area | 1429 (H) x 804 (V) mm |
| Display Colors | 1.07 B (10 - bit) |
| Brightness | 400 cd/m2 |
| Contrast | 5000 : 1 |
| Response Time | 6.5 ms |
| Refreshing Frequency | 60 Hz |
| View Angle | 178°/178° (H/V) |
| Lifetime | 50.000 hrs |
| Service Time | 16/7 |
| Glass | |
| Glass Type | Anti-Glare Tempered |
| Thickness | 4 mm |
| Hardness | Mohs 7 |
| Coating | Anti-bacterial |
| Bonding Technology | Zero Bonding 1st Gen |
| Air Gap | 1 mm |
| Sound System | |
| Speaker Position | Forward |
| Sound Channel | 2.0 |
| Power Amplify | 2 x 15 W |
| Inputs and Outputs | |
| OPS | 1 |
| HDMI IN | 3+1 Front |
| HDMI-OUT | 1 |
| VGA | 1 |
| AV IN | 1 |
| AV OUT | 1 |
| LAN | 2 / 1000 mbps |
| SPDIF | 1 |
| USB Type C | 1 Front |
| USB 2.0 | 1 + 2 Front |
| USB 3.0 | 3 + 2 Front |
| TOUCH USB | 2 + 1 Front |
| RS232 IN | 1 |
| Computing | |
| Version | 8.0 |
| CPU | A73x2 + A53x2 |
| GPU | Mali G51x2 |
| RAM/ROM | 3GB DDR4/32GB |
| WI-FI | 2,4 / 5 GHz Wi-Fi Module |
| Bluetooth | 4.0 Wi-Fi Module |
| OTA Update | Yes |
| Device Management | TeamViewer QuickSupport |
| Touch System | |
| Touch Technology | Infrared Transmission |
| Number of Touch Points | 20 Touch Input |
| Response Time | < 10 ms (typ) |
| Touch Accuracy | ± 1,5 mm |
| Minimum Touch Object | ≥ 3 mm |
| Touch Tool | Finger, Stylus, Palm |
| Compatibility | Windows, Mac, Linux, Android |
| Power | |
| Power Requirements | 100~240 V AC 50/60 Hz |
| Power Consumption with OPS | < 300 W max |
| Power Consumption without OPS | < 200 W |
| Standby Power Consumption | < 0.5 W |
| Dimensions | |
| Outline Dimension | 1489 x 897 x 88 mm (LxWxD) |
| Packing Dimensions | 1628 x 208 x 1005 mm (LxWxH) |
| Net Weight | 38,85 kg |
| Gross Weight | 48,75 kg |
| Mounting Brackets | VESA 600 x 400 |
