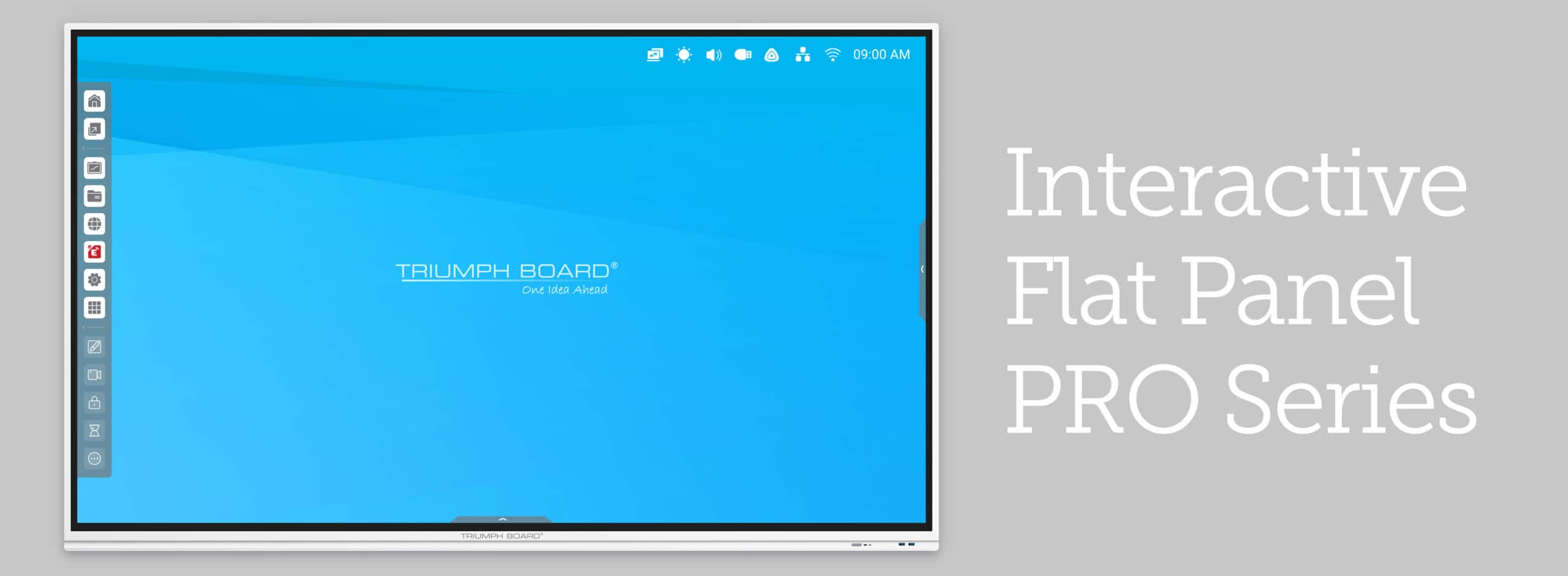

65″ Interactive Flat Panel PRO
The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL PRO is a most powerful device with Android 9.0 and a uniquely wide range of connectivity.
The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL PRO is a next-generation universal presentation tool for showcasing projects or tasks interactively in any space of office environment. New and improved 20-input IR touch technology and second-generation direct bonding with 0 mm gap enable a more precise writing experience. Antibacterial glass reduces disease transmission in the meeting room and protects the corporate environment.
Various Inputs and Outputs can be accessed on the front, side, and even bottom of the panel, USB type-C included. The front USB ports can be used to connect OPSs, laptops, or Android devices. A powerful 2,4GHz / 5GHz built-in Wi-Fi Module with Bluetooth 5.0 allows creating a hotspot.
The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL PRO is powered by Android version 9.0 bringing many new useful features, all in 4K resolution. You can create quick lessons in our new Note Whiteboard, connect to your IFP with TeamViewer QuickSupport, easily clear the entire cache with one click or restrict access to certain inputs based on the customer’s needs. All features and setup can be brought up very quickly, with a side toolbar.
The TRIUMPH BOARD 65″ INTERACTIVE FLAT PANEL PRO takes customers to the next level with an extensive software bundle that includes: Note Whiteboard Software, mozaBook CLASSROOM, EShare, OfficeSuite, TeamViewer QuickSupport.
Contact Us
If you want to purchase TRIUMPH BOARD products or find out more information, please contact us and we will connect you with an authorized distributor near to you.
Contact
- Android system 9.0 with 4K UI
- Zero Bonding 2nd generation
- Superior IR Touch
- Antibacterial & Antiglare Glass
- USB Type-C with Power Delivery
- Wi-Fi / Bluetooth Built-in & Hotspot
- LAN 1000 Mbps
- 2x 16W Speakers
- Optional Built in Mini PC
- Optional LiftBoxes and Stands
- Optional Remote Management System
| Flyer - INTERACTIVE FLAT PANELS PRO EN 2022 | Download |
| Flyer - INTERACTIVE FLAT PANELS PRO US 2022 | Download |
| Flyer - INTERACTIVE FLAT PANELS PRO RU 2022 | Download |
| Flyer - INTERACTIVE FLAT PANELS PRO CS 2022 | Download |
| Flyer - INTERACTIVE FLAT PANELS PRO LV 2022 | Download |
| Flyer - INTERACTIVE FLAT PANELS PRO ES 2022 | Download |
| Flyer - INTERACTIVE FLAT PANELS PRO DE 2022 | Download |
| EAN | 8592580117206 |
| Display | |
| Diagonal Size | 65" / 1651 mm |
| Resolution | UHD (3840 × 2160 ) |
| Screen Type | OpenCell DLED Backlight |
| Aspect Ratio | 16:9 |
| Display Area | 1429 (H) x 804 (V) mm |
| Display Colors | 1.07 B (10 - bit) |
| Brightness | 400 cd/m2 |
| Contrast | 1200 : 1 ( 5000 : 1 Dynamic) |
| Response Time | 8 ms |
| Refreshing Frequency | 60 Hz |
| View Angle | 178°/178° (H/V) |
| Lifetime | 50.000 hrs |
| Service Life | 16/7 |
| Glass | |
| Glass Type | Anti-Glare Tempered |
| Thickness | 3 mm |
| Hardness | Mohs 7 |
| Coating | Anti-bacterial |
| Bonding Technology | Zero Bonding 2nd Gen |
| Air Gap | 0 mm |
| Sound System | |
| Speaker Position | Downfaced |
| Sound Channel | 2.0 |
| Power Amplify | 2 x 16 W |
| Inputs and Outputs | |
| OPS | 1 ( 120-PIN) |
| HDMI IN | 3 |
| HDMI-OUT | 1 |
| VGA | 1 |
| AV IN | 1 |
| AV OUT | 1 |
| LAN | 2 / 1000 Mbps |
| SPDIF | 1 |
| USB Type C | 1 |
| USB 2.0 | 1 |
| USB 3.0 | 2+2 Front |
| TOUCH USB | 2 |
| RS232 IN | 1 |
| Computing | |
| Version | 9.0 |
| CPU | A73x4 |
| GPU | Mali G52x2 |
| RAM/ROM | 4GB DDR4/32GB |
| WI-FI | 2,4 / 5 GHz Wi-Fi Module |
| BT | 5.0 Wi-Fi Module |
| OTA Update | Yes |
| Device Management | TeamViewer QuickSupport |
| Touch System | |
| Touch Technology | Infrared Transmission |
| Number of Touch Points | 20 Touch Input |
| Response Time | < 10 ms (typ) |
| Touch Accuracy | ± 1 mm |
| Minimum Touch Object | ≥ 2 mm |
| Touch Tool | Finger, Stylus, Palm |
| Compatibility | Windows, Mac, Linux, Android |
| Power | |
| Power Requirements | 100~240 V AC 50/60 Hz |
| Power Consumption with OPS | < 450 W max |
| Power Consumption without OPS | < 190 W |
| Standby Power Consumption | < 0.5 W |
| Dimensions | |
| Outline Dimension | 1488 x 896 x 86 mm (LxWxD) |
| Packing Dimensions | 1656 x 204 x 1050 mm (LxWxH) |
| Net Weight | 38 kg |
| Gross Weight | 49 kg |
| Mounting Brackets | VESA 600 x 400 |
