Video Conferencing System VC1
Do you often need to communicate with people around the world? The TRIUMPH BOARD VC1 Video Conferencing System will connect you with your business partners any time you want, everywhere you need.
One to One site system – the TRIUMPH BOARD Video Conferencing System VC1 provides uniquely cost-effective real-time full HD video streaming and HD real-time content sharing with recording capability.
A wide-angle Full HD camera ensures no one is left out of the shot. A sophisticated audio processing technology microphone array produces true-to-life sound. A sleek and compact system design enables easy integration with TRIUMPH BOARD Interactive Flat Panel Series for an advanced total solution and to help to maximize the interactive experience in meeting rooms.
TRIUMPH BOARD Video Conferencing System VC1 is designed not only for standalone use but also for use with TRIUMPH BOARD Interactive Flat Panel Series with easy to mount bracket and integrated remote control.

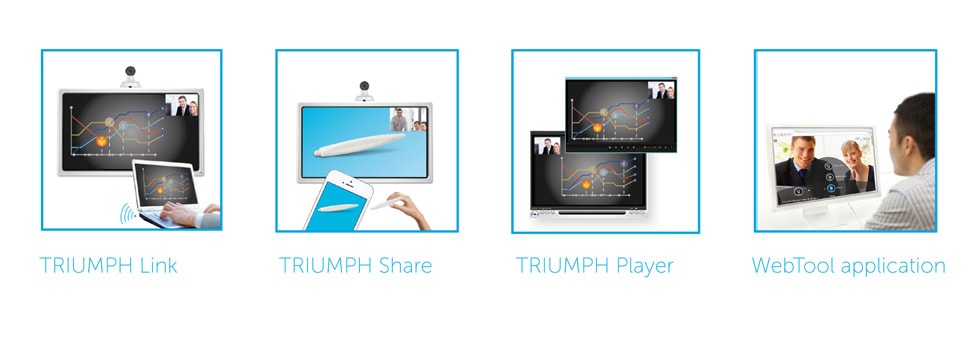

Software add-ons:
TRIUMPH Link – share live images and snapshots directly from your mobile device
TRIUMPH Share – wirelessly share content from your PC at any time during a call
TRIUMPH Player – playback recorded meetings or convert the video files to a different format
WebTool application – handy integration remote access tools
Contact Us
If you want to purchase TRIUMPH BOARD products or find out more information, please contact us and we will connect you with an authorized distributor near to you.
Contact
- One to One Site System
- Full HD video & HD content sharing
- Easy connection set up
- One-touch recording
-
High definition (88° FOV) camera
- High-effi ciency lost packet recovery technology
- Microphone array advanced audio processing technology
- Software add-ons: TRIUMPH Share, TRIUMPH Link, TRIUMPH Player, WebTool application
| Business Catalog EN 2020 | Download |
| EAN | 8592580082429 |
| Accessories in the box | Main system unit (codec), HD camera, microphone array, IR remote control with bateries, power supply, cables, warranty card, quick instalation card |
| Communications | H.323 and SIP standards/128Kbps~4Mbps/RJ45 network LAN (10/100/1000)/Manual bandwidth setings/Content sharing capability from all sites |
| Camera | Support for single camera/HD fi xed focus camera/2-megapixel CMOS sensor/4X digital zoom/±100° pan; ±25° tilt, 88° FOV |
| People video resolutions | HD1080p (1920 x 1080)/HD720p (1280 x 720)/480p (848 x 480)/4SIF (704 x 480), 4CIF (704 x 576)/WCIF (512 x 288)/SIF (352 x 240), CIF (352 x 288)/All resolutions at 30fps |
| Supported Content video resolutions | WSXGA (1440 x 900)/HD (1360 x 768)/SXGA (1280 x 1024)/SXGA (1280 x 960)/WXGA (1280 x 800)/HD720p (1280 x 720)/XGA (1024 x 768)/SVGA (800 x 600)/VGA (640 x 480)/Output resolutions: HD720p (1280 x 720) up to 30fps |
| Video standards | H.264, H.263, H.263+, H.261/H.239 dual video streams |
| Video inputs | HD camera, VGA |
| Video outputs | HDMI, VGA |
| Audio standards | G.711, G.722, G.722.1, G.728, G.722.1C |
| Audio features | Automatic gain control (AGC), Advanced noise reduction, Advanced echo cancellation |
| Audio inputs | Microphone array, Line-in (3.5 mm) |
| Audio outputs | Digital audio on HDMI cable, Line-out (3.5 mm) |
| Other supported standards | H.224 / H.281, H.225, H.245, H.323 Annex Q, H.460 |
| User interface | Supports single and dual monitor display / Multiple layout styles User-friendly OSD (27 supported languages: English, Czech, Danish, Arabic, Bulgarian, Croatian, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Latvian, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukranian) |
| Network | NAT / firewall traversal,High Efficiency Lost Packet Recovery (HELPeR™),API support via Telnet,Wake-on-LAN (WOL) support, IPv4 and IPv6 support |
| Security | AES (Advanced Encryption Standard) function, Password protection for system setting,Password protection for remote system management |
| Web management tool | Remote management through the Web Firmware update via Ethernet / Internet Phonebook download / upload / edit Restore system settings |
| Value-added features | Speed dialing via hot keys Firmware update via Ethernet or USB fl ash drive Screensaver and auto power off mode Front and rear USB 2.0 ports |
| Power Supply | AC 100V~240V, 50/60Hz Consumption: EIAJ 12V, 4A |
| Environmental data | Operation temperature: 0~40°C Operation humidity: 20%~80% Storage temperature: -20~60°C Storage humidity: 20%~80% |
| Gross Weight | 3.7 kg (8.15 lbs) |
| Dimensions | Package: 330 x 230 x 265 mm |
| Dimensions | Main system (codec): 260 x 158.7 x 33 mm |
| Dimensions | Camera: 137.7 x 122.3 x 130 mm |
| Dimensions | Microphone array: 131.9 x 118.6 x 25.5 mm |
| Quick Start Card Video Conferencing System VC1 EN | Download |
| Manual Video Conferencing System VC1 EN | Download |
| Quick Start Card Video Conferencing System VC4 EN | Download |
| Manual Video Conferencing System VC4 EN | Download |
| TRIUMPH Link User Guide EN | Download |
| TRIUMPH Player User Guide EN | Download |
| TRIUMPH Share User Guide EN | Download |
| TRIUMPH Meeting Quick User Guide EN | Download |
| TRIUMPH Meeting Android for VC4 | Download |
| TRIUMPH Meeting Windows V2.7.2023.30 for VC4 | Download |
| TRIUMPH Meeting MAC OS V2.7.2011.13 for VC4 | Download |
| TRIUMPH Player Windows V1.3.2033.34 for VC1/VC4 | Download |
| TRIUMPH Share Windows V11.0.0.25 for VC1/VC4 | Download |
| FirmWare VideoConferencing for VC1 | Download |
